The portable charger has a Plug and Charge function, equipped with an OLED display and 5 meters of cable (3 x 6mm + 2 x 0.5mm), with a charging power capacity of up to 7.4Kw, it is compatible with all vehicles equipped with a Type2 socket (Mennekes), for connection to an industrial socket, and with a charging delay adjustment button, to adjust the vehicle’s charge from 8A-10A-13A-16A-20A-25A-32A.
Esgotado
i9CHARGE – i9 – CPT2 – 32
Out of stock

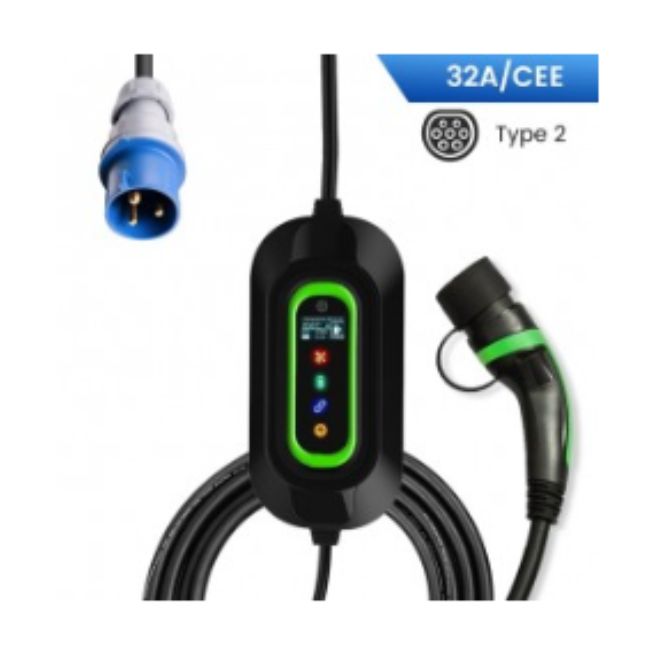

MOBIBOX T2 portable charger (Mennekes) – 230V – 1 Phase
Single-phase 7.4Kw (adjustable from 8A to 32A) – Industrial plug
| Charging control (all models) | Plug & Charge |
|---|---|
| Socket / cable type | Type 1 / Type 2 connector |
| Portable device dimensions | 200 x 95 x 55 mm |
| Power | 7.4Kw |
| Charging current | 32A |
| Adjustable | 8A – 10A – 13A – 16A – 20A – 25A – 32A |
| Rated current | 230V 50/60Hz |
| Charging mode | Mode 2 IEC 61851-1/SAE J1772 |
| Weight | 3.4kg |
| Temperature | -30 ºC to +60 ºC |
| Protection against | Short circuit – Overvoltage / undervoltage – Leakage current – Lightning |
| Protection on | Current – temperature – over and under frequency |
| Protection | Earth and IP66 |
| Certification | CE – TUV – SAE J1772 IEC 62752 EN 62196-2 IEC 61851-1 |
